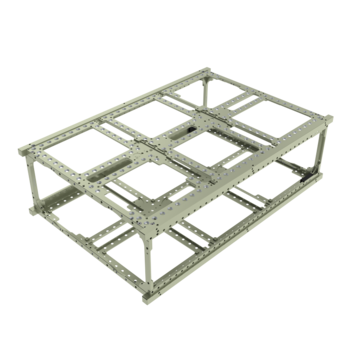

6U Nanosatellite Structure

The 6U-platform is based on GomSpace's new modular systems that provide professional 6U and larger platforms for commercial missions with high demands for payload space and orbit control.

Applications

  • Education and capacity building
  • Technology demonstration missions
  • Small science missions
  • Commercial missions

Flexibility

With the 6U-Platform you get the perfect match for your mission. You can:

  • Add large payloads
  • Mix with your own platform subsystems
  • Mix with subsystems from other vendors

6U configuration

  • Default structure mass: 1,060 g
  • 4U available for Payload

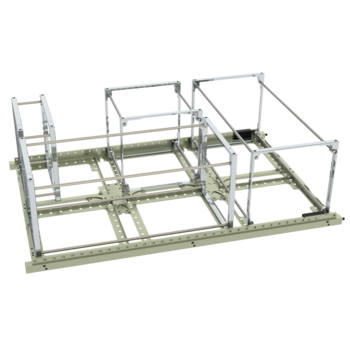

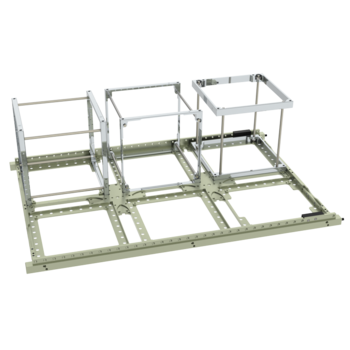

  • High degree of freedom for hardware mounting with mounting rings
  • Four killswitches
  • All threaded holes have helicoils for grounding
  • Material: Alu 7075
  • Mass of structure alone: 731 g
  • Outside measurements without killswitches: 340.5 x 226.3 x 100.0 mm
