GOMSPACE PLATFORM KITS

MINIMIZE COMPLEXITY, REDUCE RISK, AND ACCELERATE YOUR MISSION

Every space mission starts with an ambitious goal—whether it’s to advance scientific discovery, improve communication, or monitor our planet from orbit. But for too many teams, the journey from vision to launch is filled with obstacles: long development timelines, complex procurement processes, and the technical challenges of integrating multiple subsystems.

These hurdles don't just slow progress—they drain resources, introduce risks, and delay the ultimate mission objectives.

At GomSpace, we believe that YOUR ambitious goals should be accessible and that mission teams should focus on what truly matters: their payload, their data, and their impact. That’s why we created the GomSpace Platform Kits – a fast build-in solution designed to minimize complexity, reduce risk, and accelerate satellite missions.

Minimize Risk, Maximize Reliability
The GomSpace Platform Kits are built around our high-performance, field-proven subsystems, ensuring reliability from day one. Our standardized satellite kit is ready for assembly and payload integration, with straightforward interfaces that simplify the process.

Every kit includes:
• A complete set of subsystems and harnessing.
• A comprehensive integration manual and technical documentation.
• A robust and reliable platform based on the GomSpace product portfolio.
• 50 hours of dedicated customer support to assist in the process.

Who are these kits built for?
Whether you’re a research institution or a commercial enterprise, the GomSpace Platform Kits provide a proven, reliable foundation for your space mission.

We empower teams to achieve their goals in space without being weighed down by technical hurdles. We help you reduce costs, streamline development, and achieve mission success faster than ever with:

• Complete kits of standard spacecraft parts,
• Comprehensive documentation to enable quick and easy integration
• Support from our experts to help you all way through your project

Your mission deserves a launchpad that’s as ambitious as your vision. With GomSpace, the path to space has never been clearer.

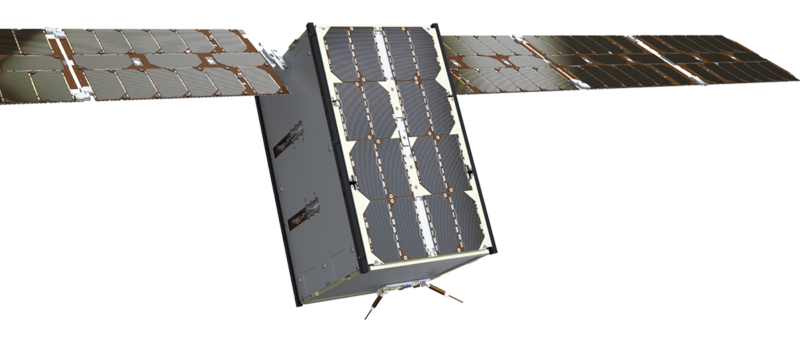

6U PLATFORM KIT

The GomSpace 6U Platform Kit reduces time to launch and project risk without compromising performance. The satellite components are based on GomSpace's portfolio of standard products—just add your own mission-specific payload. The Platform Kit is designed with flexibility in mind to accommodate a wide range of different payload applications.

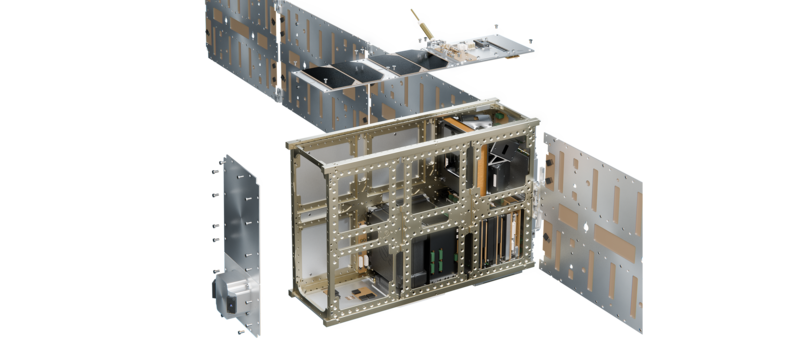

8U PLATFORM KIT

The GomSpace 8U Platform Kit reduces time to launch and project risk without compromising performance. The satellite components are based on GomSpace's portfolio of standard products—just add your own mission-specific payload. The Platform Kit is designed with flexibility in mind to accommodate a wide range of different payload applications.

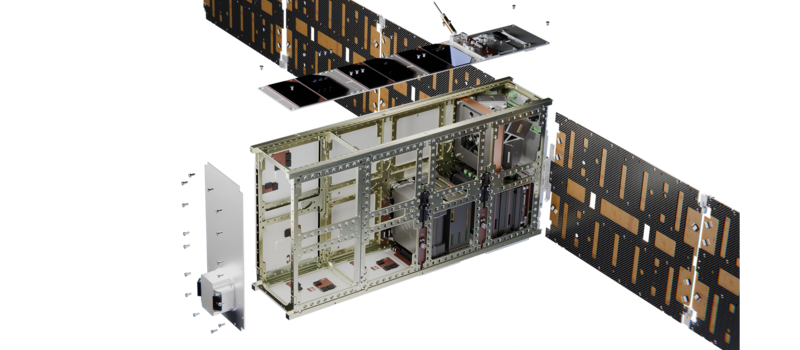

12U PLATFORM KIT

The GomSpace 12U Platform Kit reduces time to launch and project risk without compromising performance. The satellite components are based on GomSpace's portfolio of standard products—just add your own mission-specific payload. The Platform Kit is designed with flexibility in mind to accommodate a wide range of different payload applications.

PLATFORM KIT COMPARISON

KEY FEATURES	6U Platform KIT	8U Platform KIT	12U Platform KIT	16U Platform KIT
Max Spacecraft Mass	12 kg	15 kg	22 kg	24 kg
Max Payload Mass	Up to 6 kg	Up to 8 kg	Up to 15 kg	Up to 17 kg
Payload Volume	3 U	5 U	8 U	12 U
Max Power Generation (AMO, 25°)	54 or 103 W	56 or 105 W	58 or 108 W	67 or 116 W
Power Bus	3.3V, 5V, 12V, 16V 18V, 22V and VBat (24-32V)	3.3V, 5V, 12V, 16V 18V, 22V and VBat (24-32V)	3.3V, 5V, 12V, 16V 18V, 22V and VBat (24-32V)	3.3V, 5V, 12V, 16V 18V, 22V and VBat (24-32V)
Battery Capacity	80-240 Wh	80-240 Wh	80-240 Wh	80-240 Wh
Determination Error Sun/Eclipse	200 arcsec	200 arcsec	200 arcsec	200 arcsec
Pointing Error Sun/Eclipse	250 arcsec	250 arcsec	250 arcsec	250 arcsec
Position Knowledge (RMS)	3 m	3 m	3 m	3 m
Data Storage	120 GB or more	120 GB or more	120 GB or more	120 GB or more
Data Buses	Space Wire, CAN, RS422 and TTL level UART	Space Wire, CAN, RS422 and TTL level UART	Space Wire, CAN, RS422 and TTL level UART	Space Wire, CAN, RS422 and TTL level UART
TMTC Communication	Uplink / Downlink: S-band	Uplink / Downlink: S-band	Uplink / Downlink: S-band	Uplink / Downlink: S-band
High Speed Link (HSL) Communication	Uplink: S-band Downlink: S-band and X-band	Uplink: S-band Downlink: S-band and X-band	Uplink: S-band Downlink: S-band and X-band	Uplink: S-band Downlink: S-band and X-band
TMTC Data Downlink	Up to 90 kbps	Up to 90 kbps	Up to 90 kbps	Up to 90 kbps
High Speed Link (HSL) Data Downlink (CCSDS Compatible)	From 500 kbps to 6 Mbps (S-band) and up to 225 Mbps (X-band)	From 500 kbps to 6 Mbps (S-band) and up to 225 Mbps (X-band)	From 500 kbps to 6 Mbps (S-band) and up to 225 Mbps (X-band)	From 500 kbps to 6 Mbps (S-band) and up to 225 Mbps (X-band)
High Speed Link (HSL) Data Uplink (CCSDS Compatible)	From 500 kbps to 6 Mbps (S-band)	From 500 kbps to 6 Mbps (S-band)	From 500 kbps to 6 Mbps (S-band)	From 500 kbps to 6 Mbps (S-band)
Propulsion (optional)	Up to 5000 Ns	Up to 5000 Ns	Up to 5000 Ns	Up to 5000 Ns
Security	AES256 Encryption and Authentication	AES256 Encryption and Authentication	AES256 Encryption and Authentication	AES256 Encryption and Authentication
Design Lifetime	5 years in LEO	5 years in LEO	5 years in LEO	5 years in LEO
