Products / NanoPower P80

Electrical Power System

NanoPower P80 is a Electrical Power System (EPS), designed to expertly handle power collection and distribution for satellites spanning 6U to microsat sizes. With the capability to handle solar arrays producing up to 300W output power, this system is equipped and carefully tested to meet the demanding requirements of space missions throughout its lifecycle. NanoPower P80 is closely connected to BP8.

Get in touch

NanoPower P80 features a scalable high-power solution, multiple input and output channels, and an integrated battery protection system. It incorporates components from other flight-proven GomSpace products, ensuring reliability and excellence in spacecraft power systems.

HIGHLIGHTS

Flexible power design

A scalable architecture with multiple input and output channels, in a very mass and volume efficient package ensuring adaptability across different mission designs.
– Up to 16 output converters with 96 output channels.
– Up to 25 V solar input converters with 48 input channels.

Add to quote

Key features

Key feature

High Power Management:

Manages up to 300W from solar arrays, with 12 MPPT 25 V solar panel input channels.

Efficient Power Distribution:

For satellites from 6U and up, with efficiency: up to 96%.

Robust Security:

Protection switches, and the system logs overcurrent events, prioritizing security and battery longevity.

Seamless Integration:

Compatible with third-party subsystems, supporting various communication channels like CAN/I2C, CSP protocol, GOSH interface. Easy installation with PC104 mounting holes.

Versatility for SpaceTug Providers:

Serves as a power distribution unit for larger spacecraft like space tugs.

Deployment device control.

EPS master and kill switch logic.

Technical insights

Power Supply Module:

Up to 300W output power.
Scalable size up to 5 stacks. (9 combinations see option sheet).
Compatible with the GomSpace 6U structure and supports PC-104 mounting holes.

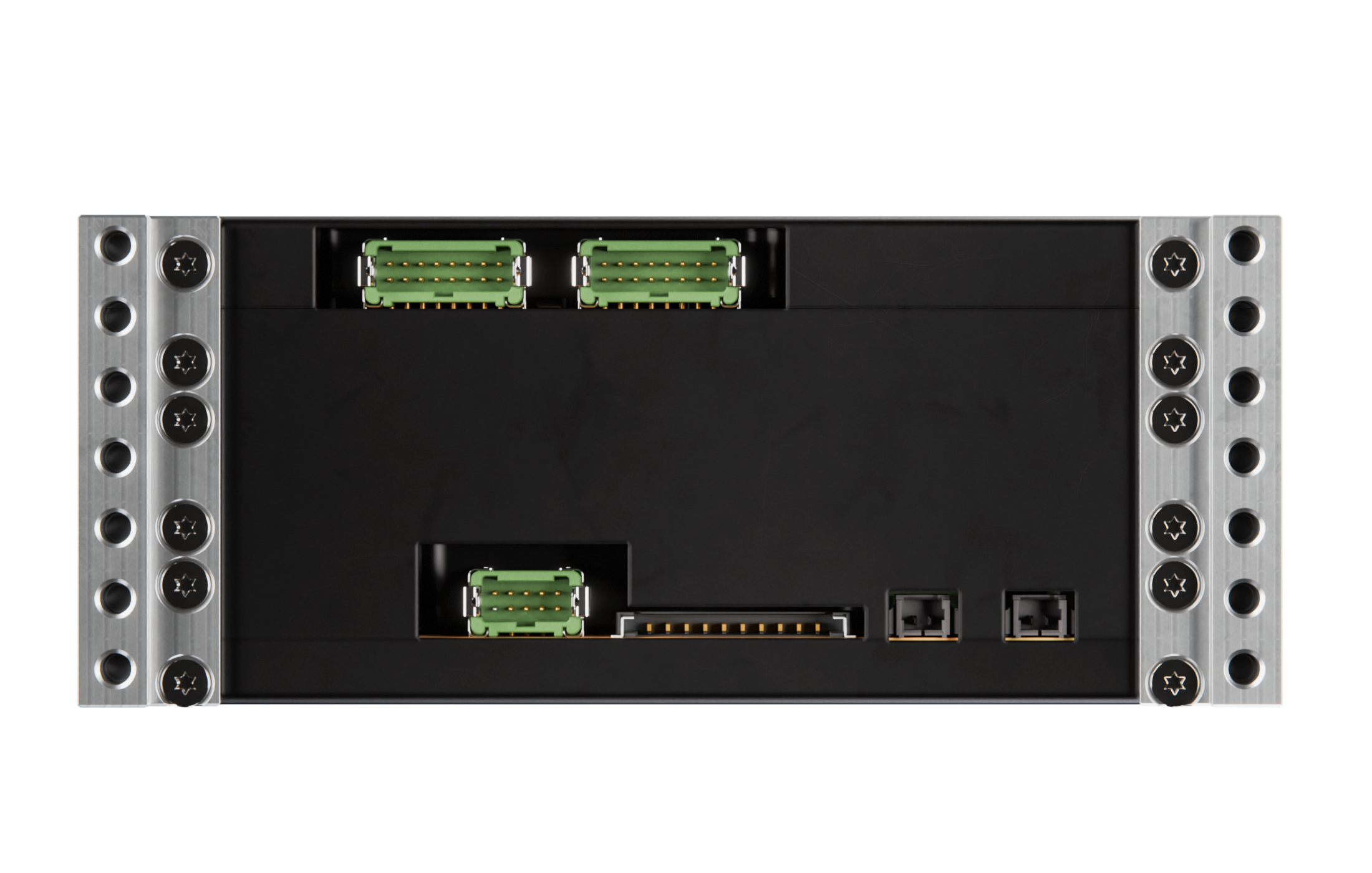

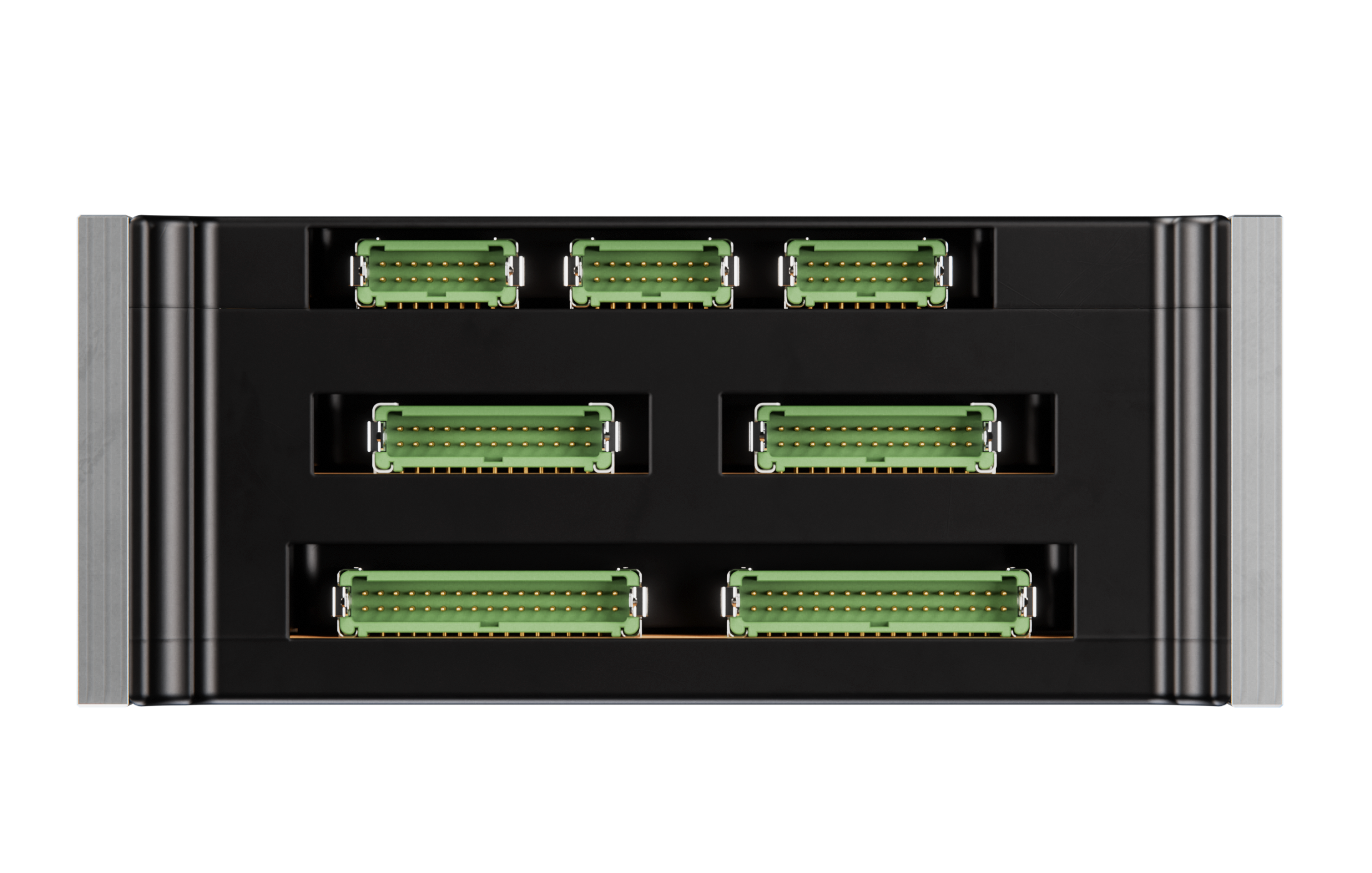

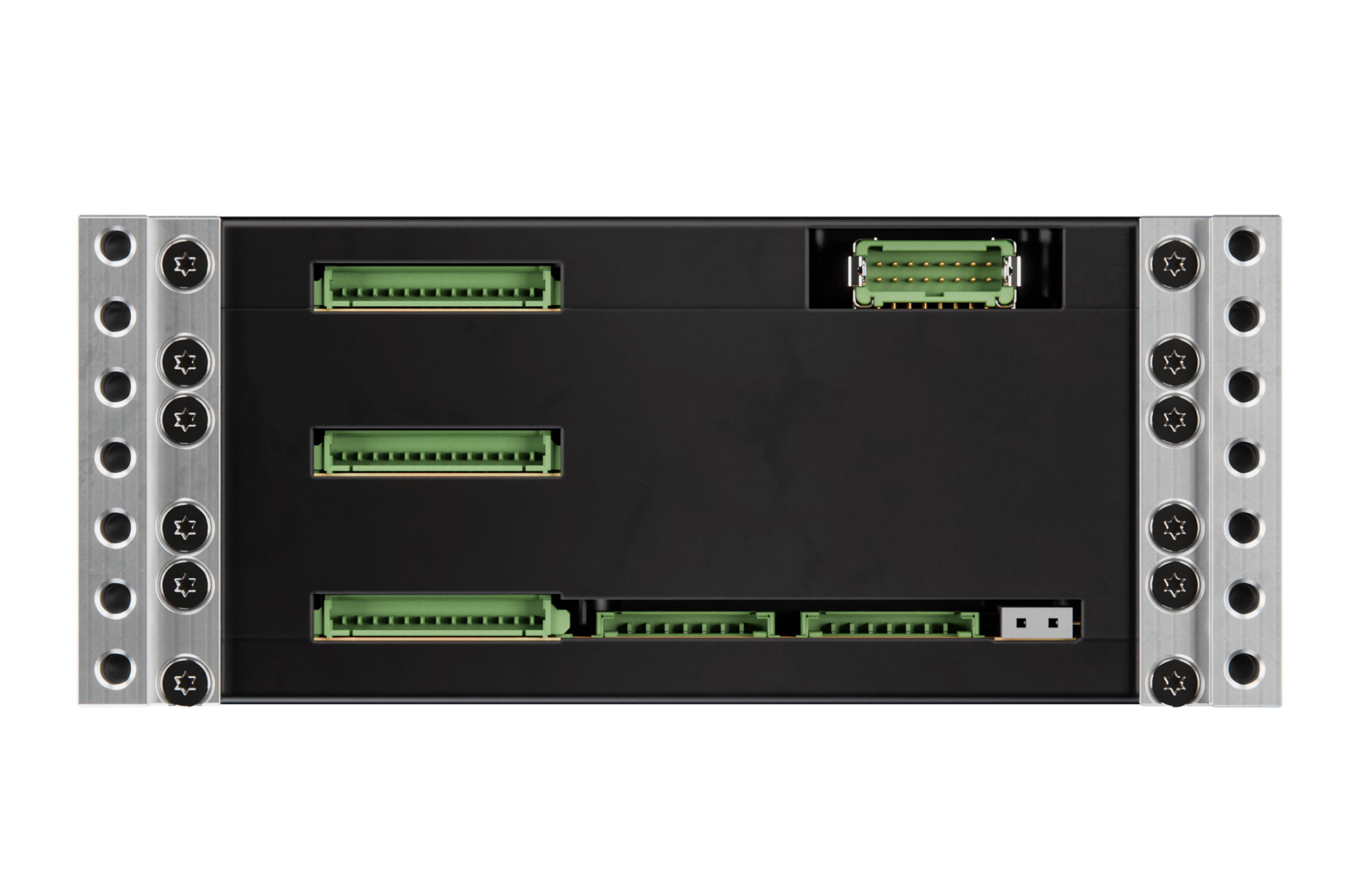

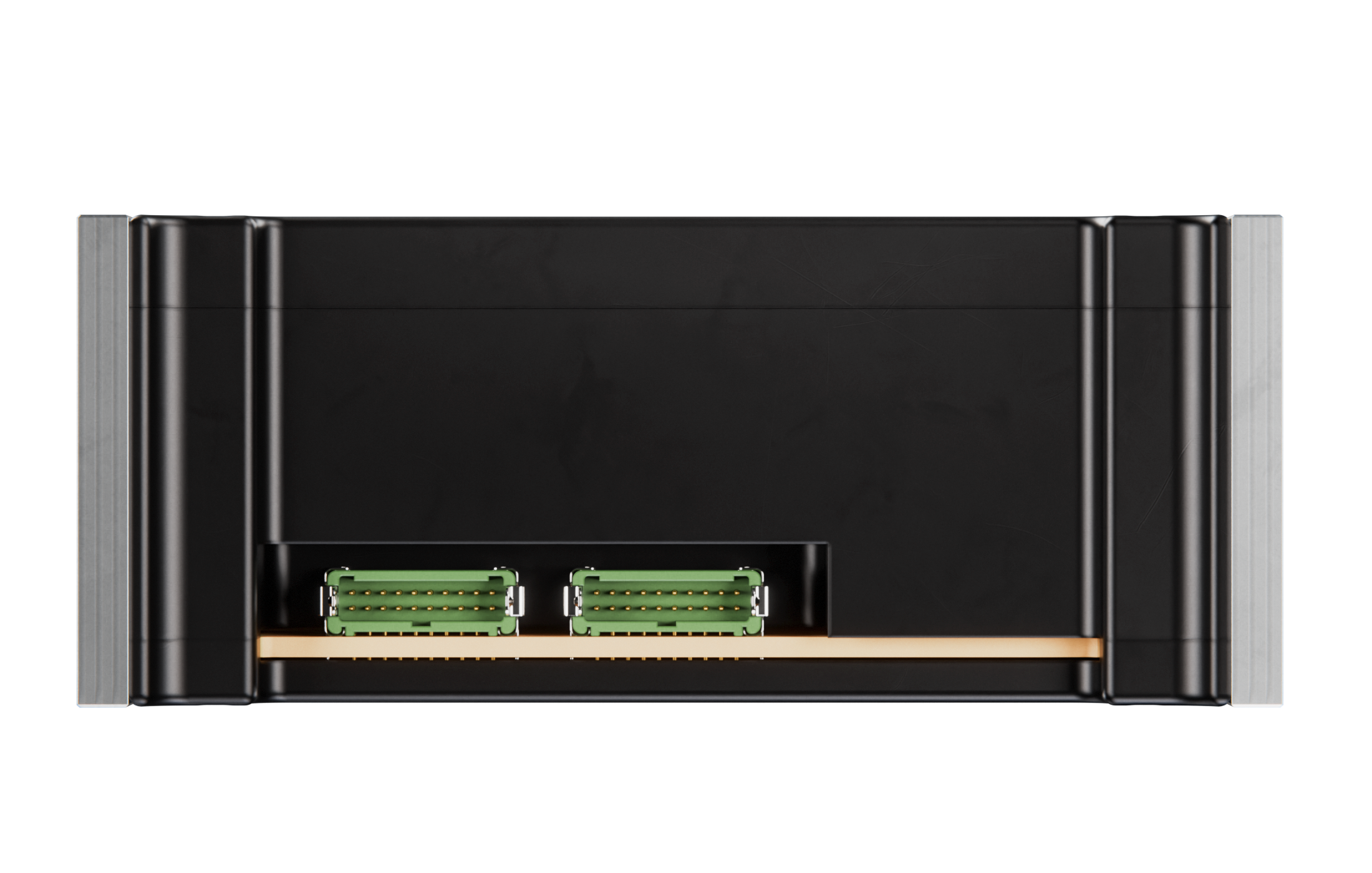

The system can be interfaced through 3 Gecko connectors with multiple pins for each channel.
Dimensions: 95 mm x 95 mm x 38.8 to 65mm (with 3 or 5 modules).
Mass: From 360.8 to 619.6 grams (with 3 or 5 modules).

Power Management Unit (PMU):

Serves as the central power controller handling up to max 12A input and output simultaneously.
Managing up to four battery pack sets (battery packs can be in parallel coupling to increase capacity).
Overseeing EPS master and kill switch logic.
Deployment device control.

Array Conditioning Unit (ACU):

Manages power flow from solar panels to the battery and the overall power system.
Featuring 12 Maximum Power Point Tracking (MPPT) boost converters (12 x 1 A).
Killswitch/Remove Before Flight (RBF) inhibit switch.

Power Distribution Unit (PDU):

Controls power distribution to satellite subsystems.
12 low-voltage latch-up protected (LUP) channels, fed by 3 converters, each configurable to 3.3 V, 5 V, or 12 V with up to 96% efficiency.
4 high/low-voltage LUP channels, fed by 1 converter, configurable to 3.3 V,
5 V, 12 V, 16 V, 18 V, 20 V or 21.8 V.
8 high-voltage LUP channels delivering raw battery voltage.
LUP channels are max 2A, but some can be paired to provide max 4A.
All configuration is done on order time via Option Sheet for P80 PDU.
